Articulated and Drawbar-Coupled Flat Cars
A roster of the articulated and drawbar-coupled flat cars is provided as follows:
SP 599056-599070 2-unit articulated F-140-1 SSW 86200-86211 " " " " " " SP 599071 2-unit drawbar F-140-2 SP 599072-599095 2-unit drawbar F-140-3 SP 599100 5-unit drawbar F-350-1 SP 599101 2-unit articulated ????
These cars consisted of pairs (and five) of articulated and drawbar-connected flats consisdered as one car.It is assumed that they were assembled by connecting pairs of existing flat cars, however, the F-140-3 class was purchased new in this configuration. Some were listed as being equipped with tie downs for the transport of farm implements and some were listed as having pedestals for handling containers. They were surely experimental and were the pre-cursors of the articulated double stack cars that SP and AC&F pioneered.

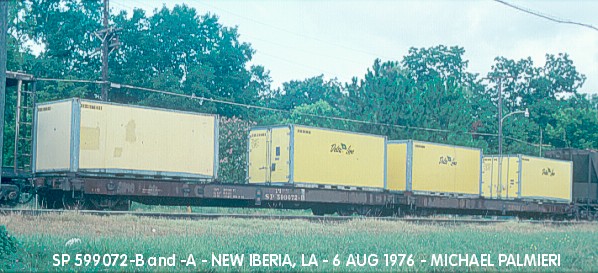

Photo by: Michael Palmieri
SP 599056-599069 |
2-unit articulated flats |
|
SSW 86200-86211 |
2-unit articulated flats |
|
SP 599070 |
2-unit drawbar connected flat |
|
SP 599071-599095 |
2-unit drawbar connected flats |
|
SP 599100 |
5-unit drawbar connected flat |
|
|
2-unit articulated flat |
