G-100-1 Gondolas

A roster of the G-100-1 class gondolas is provided as follows:


	SP 345000-345599

These 25'-9" ore gondollas were all built by SP's Sacremento shops in 1958 and featured 1350 ft3 capacity when new. In the mid 1960's, the cars were modified at SP's Sacremento Shops to recieve 12 inch side and end extensions to accomodate additional ore bringing their capacity up to 1602 ft3. These cars were used in captive service hauling ore from Kaiser Steel's mine to Los Angeles for export. A J. Pat Bray article on the history of the Kaiser Ore Trains can be seen in the Winter 1996 (#50) edition of the SP Historical and Technical Society's magazine Trainline. In later years, they were placed into general aggregate service and were common in Texas.

Photo by: John Rodgers

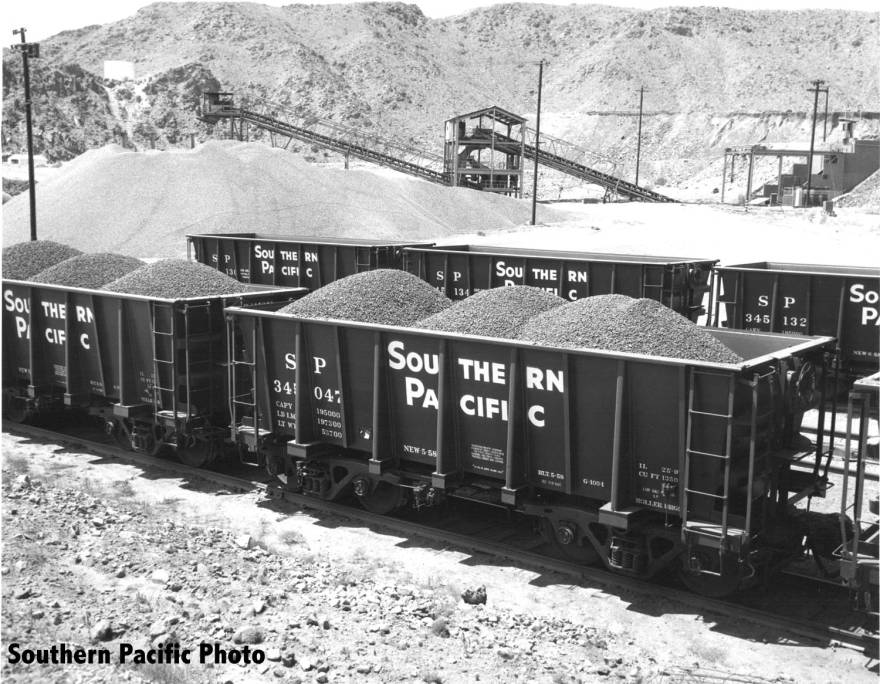

SP 345047

Southern Pacific Photo

Steve Peery Collection

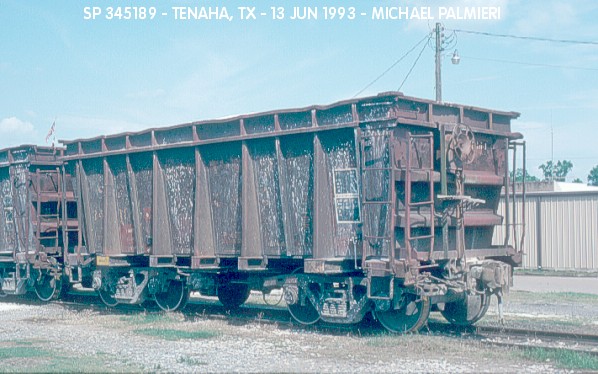

SP 345189

Mike Palmieri

Tenaha, TX   6/13/1993

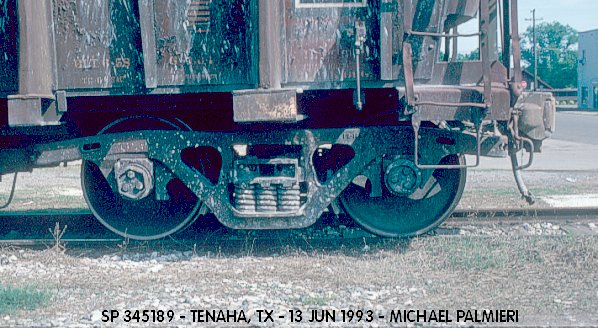

SP 345189 (detail)

Mike Palmieri

Tenaha, TX   6/13/1993

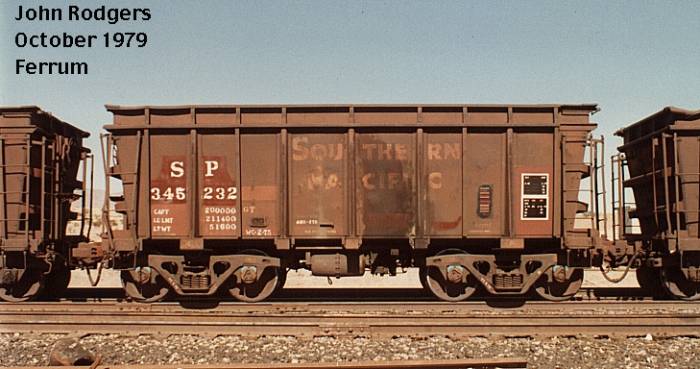

SP 345232

John Rodgers

Ferrum, CA   10/1979

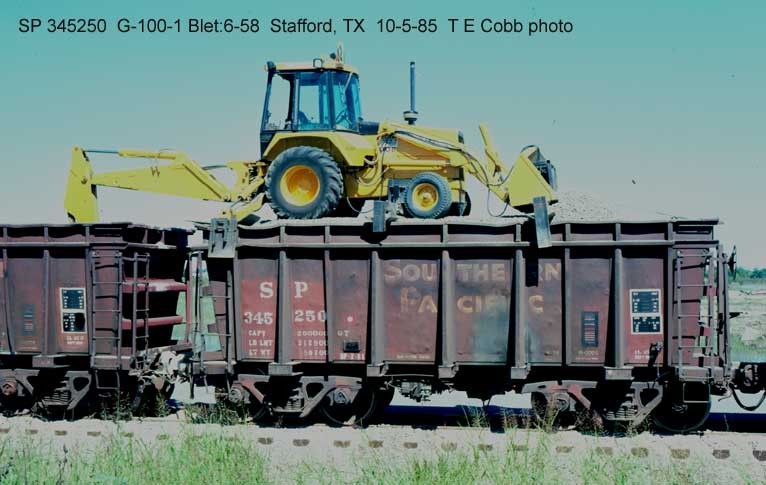

SP 345250

Tom Cobb

Stafford, TX   10/5/1985

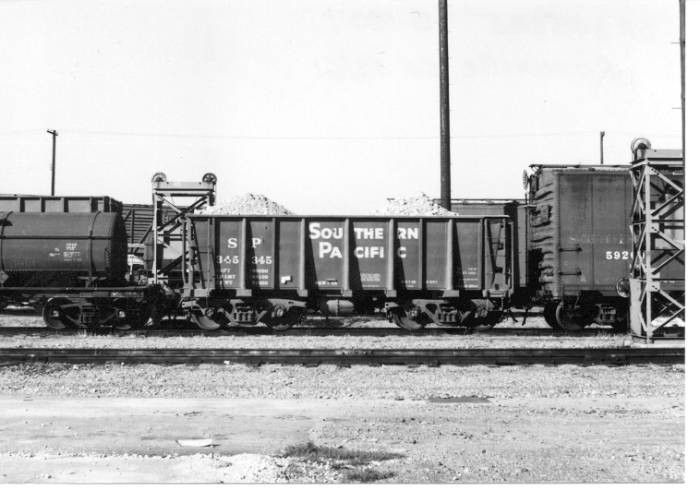

SP 345345

Carl Rodolf

Roseville, CA   12/1961

SP 345395

John Rodgers

Ferrum, CA   10/79

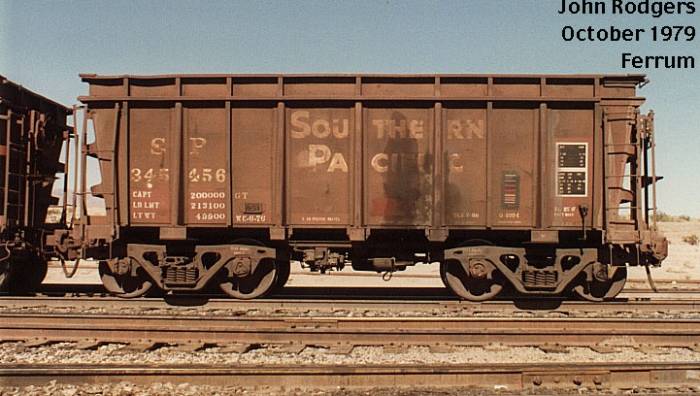

SP 345456

John Rodgers

Ferrum, CA   10/1979

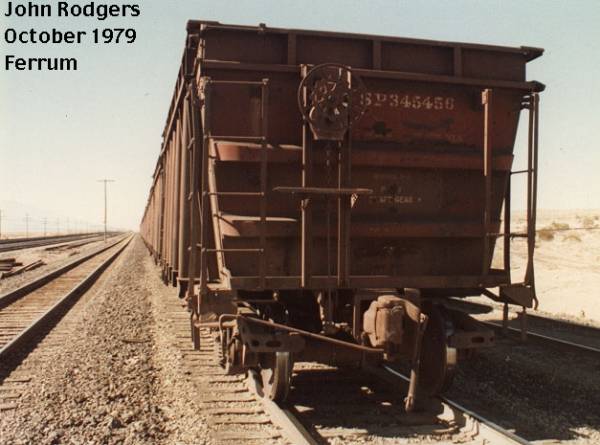

SP 345456 (end)

John Rodgers

Ferrum, CA   10/1979

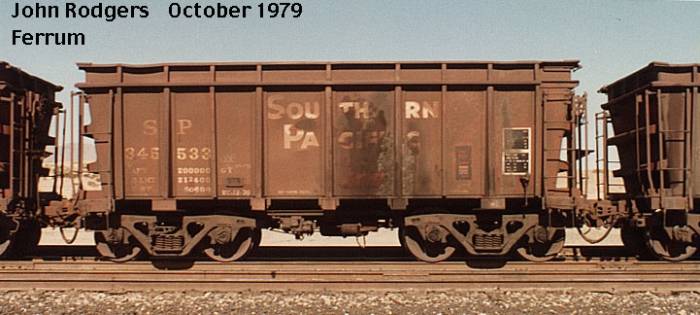

SP 345533

John Rodgers

Ferrum, CA   10/1979

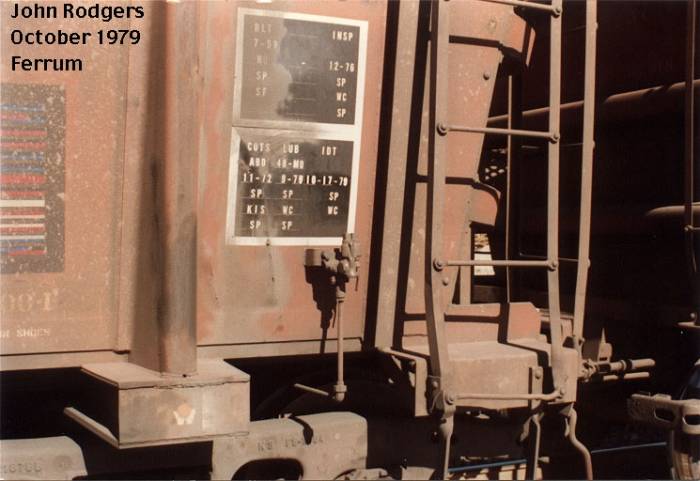

SP 345533 (lube plate)

John Rodgers

Ferrum, CA   10/1979

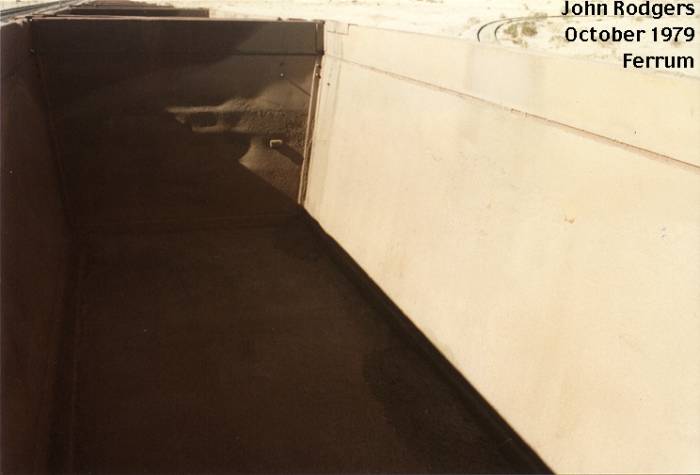

Interior Detail

John Rodgers

Ferrum, CA   10/79

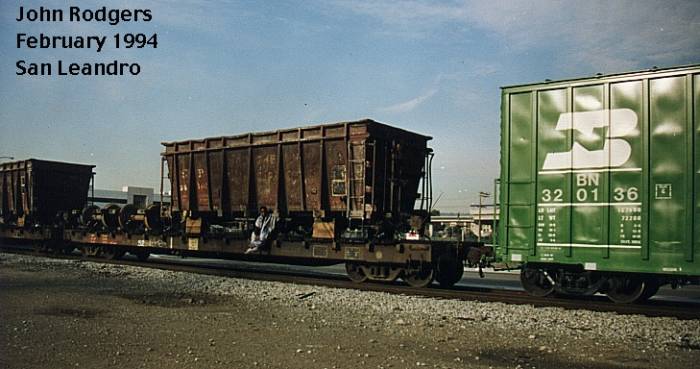

Wrecked Gon

John Rodgers

San Leandro, CA   2/1994

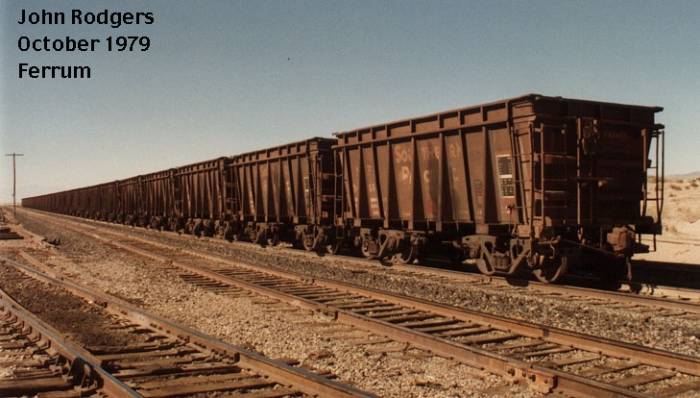

Ore Gons at Ferrum 1979

John Rodgers

Ferrum, CA   10/1979
