F-70-43 Flat Cars

A roster of the F-70-43 class flat cars is provided as follows:


	SP  509000-509124	57'-0"	bulkheads	job # 14197
	SP  509125-509324	57'-0"	bulkheads	job # 14828
 	SP  580500-580614	62'-0"	plain		job # 14196
	SP  580615-580624	62'-0"  (possibly diverted ????)
	SP  599170-599179	62'-0"  (possibly diverted ????)

	SSW 85650-85774		62'-0"	plain		job # 14196
	SSW 86500-86624		57'-0"	bulkheads	job # 14197

	SSW 87100-87110		57'-0"	(probably re#'d from above at some point)

	Golden West numbers:	GVSR 443000-443048


Photo by: Charles Lange

These cars were built by GBEC in 1966. Some were built with bulkheads for plasterboard loading. While others were built as plain flats. Distance between bulkheads as shown above. Also, some of the bulkhead cars were rebuilt and repainted as Golden West Service cars and later re-stenciled as SP cars after the Golden West leases expired. Also of note is car SP 509184 which was converted to crushed auto service ca. 1970 as part of SP's DASH (Disposal of Scrap Auto Hulks) program.



SP:

SP 509167

Brian Rutherford

Lakehead, CA; 08/1975

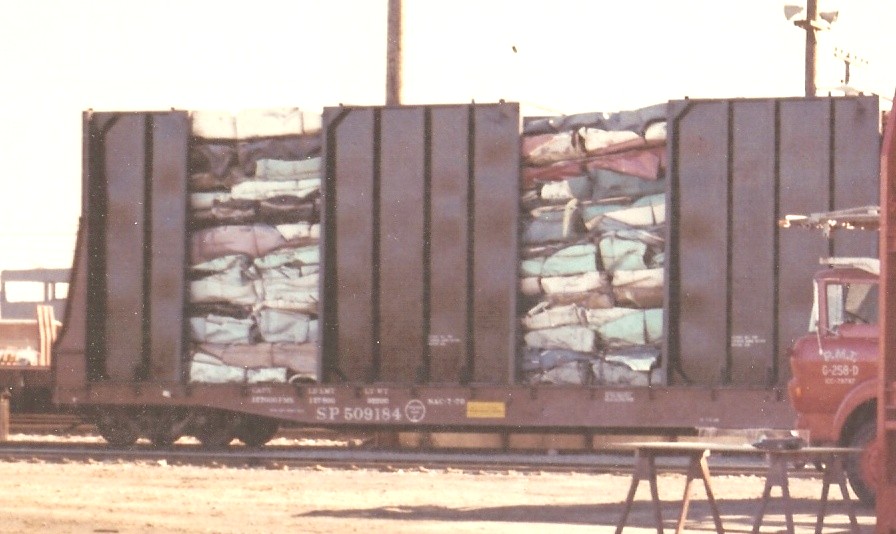

SP 509184

SP photo; Steve Peery col.



SP 509184

SP photo; Steve Peery col.

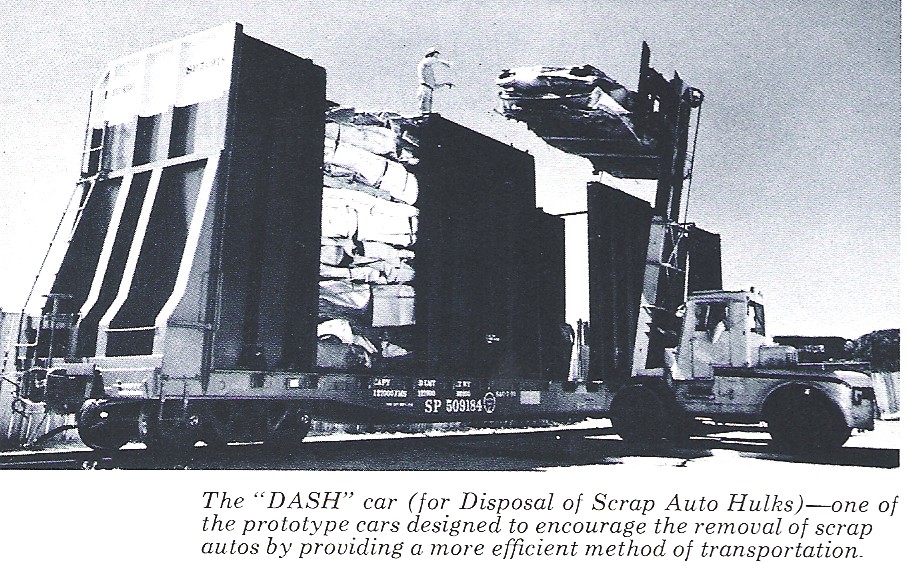

SP 509184

SP photo; Bill Klope col.

SP 1970 Annual Report, pg. 12

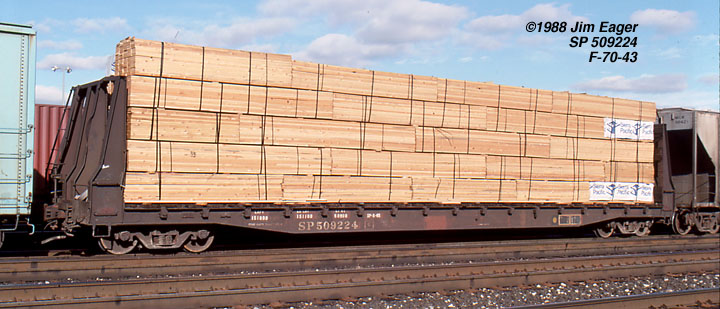

SP 509224

Jim Eager

1988

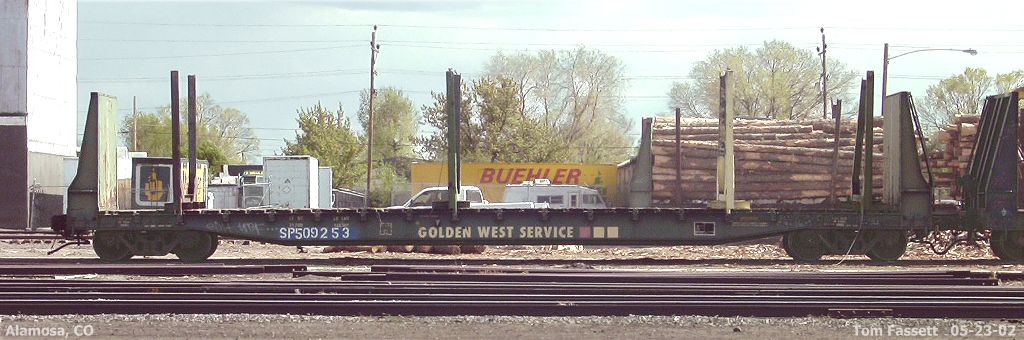

SP 509253

Tom Fassett

Alamosa, CO; 05/23/2002

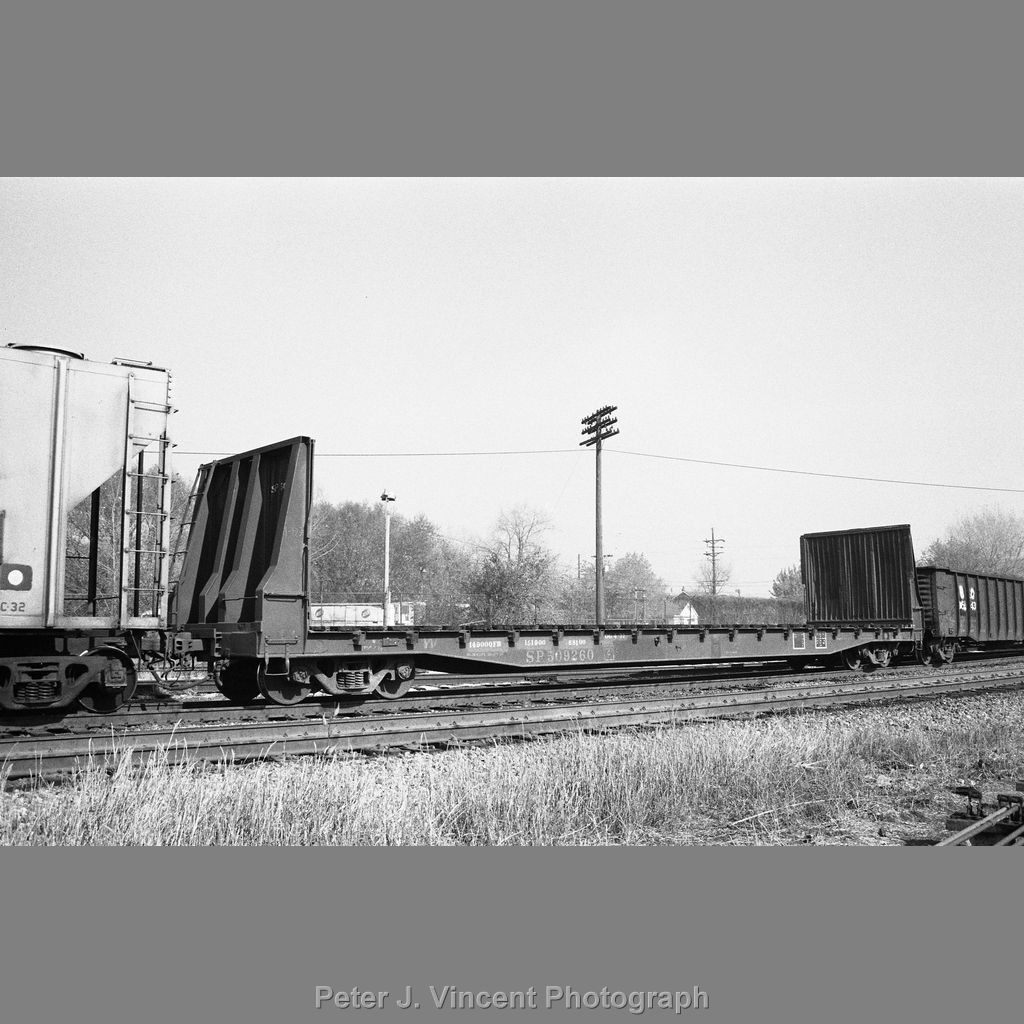

SP 509260

Peter Vincent

East Chicago, IL; 10/1979

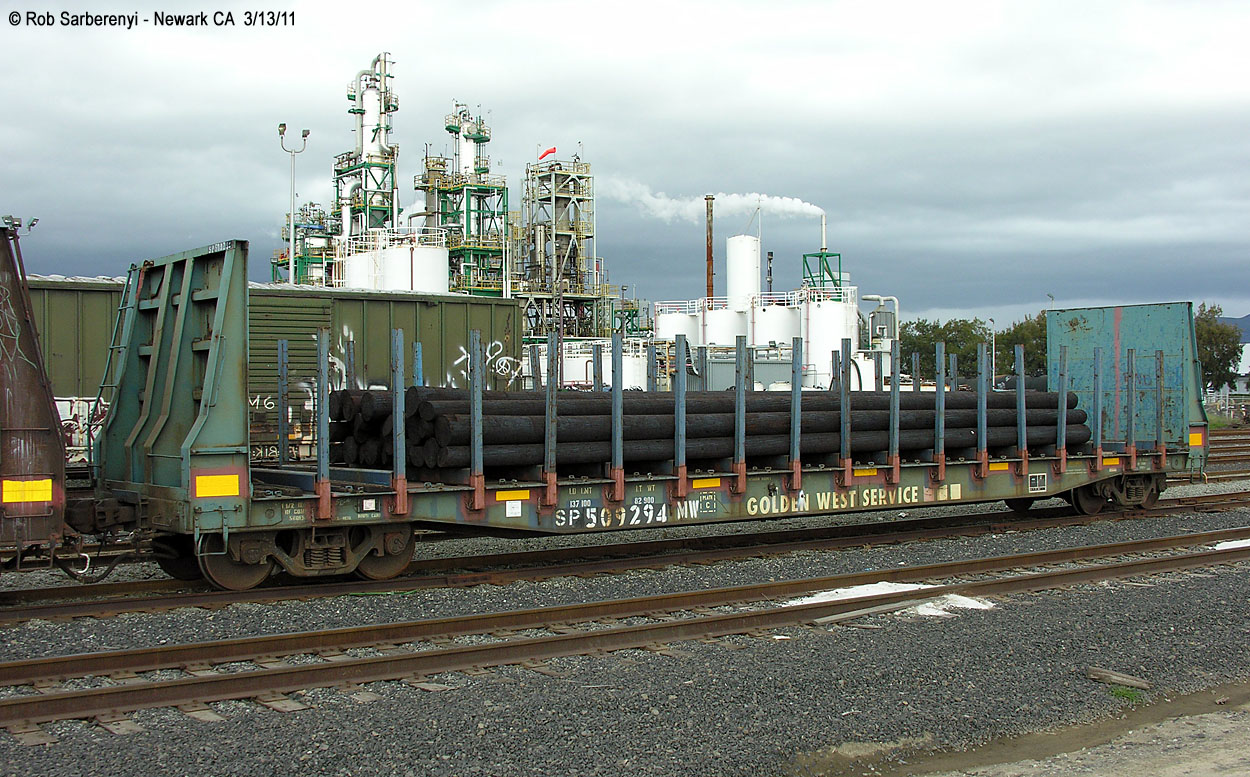

SP 509294

Rob Sarberenyi

Newark, CA; 03/13/2011

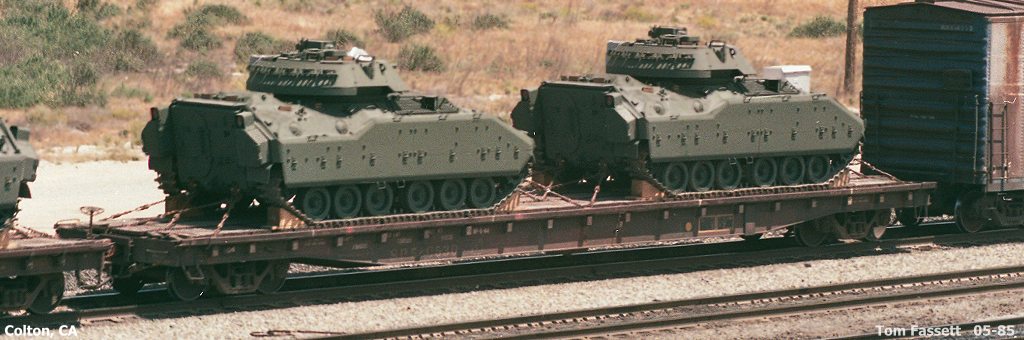

SP 580530

Tom Fassett

Colton, CA; 05/1985

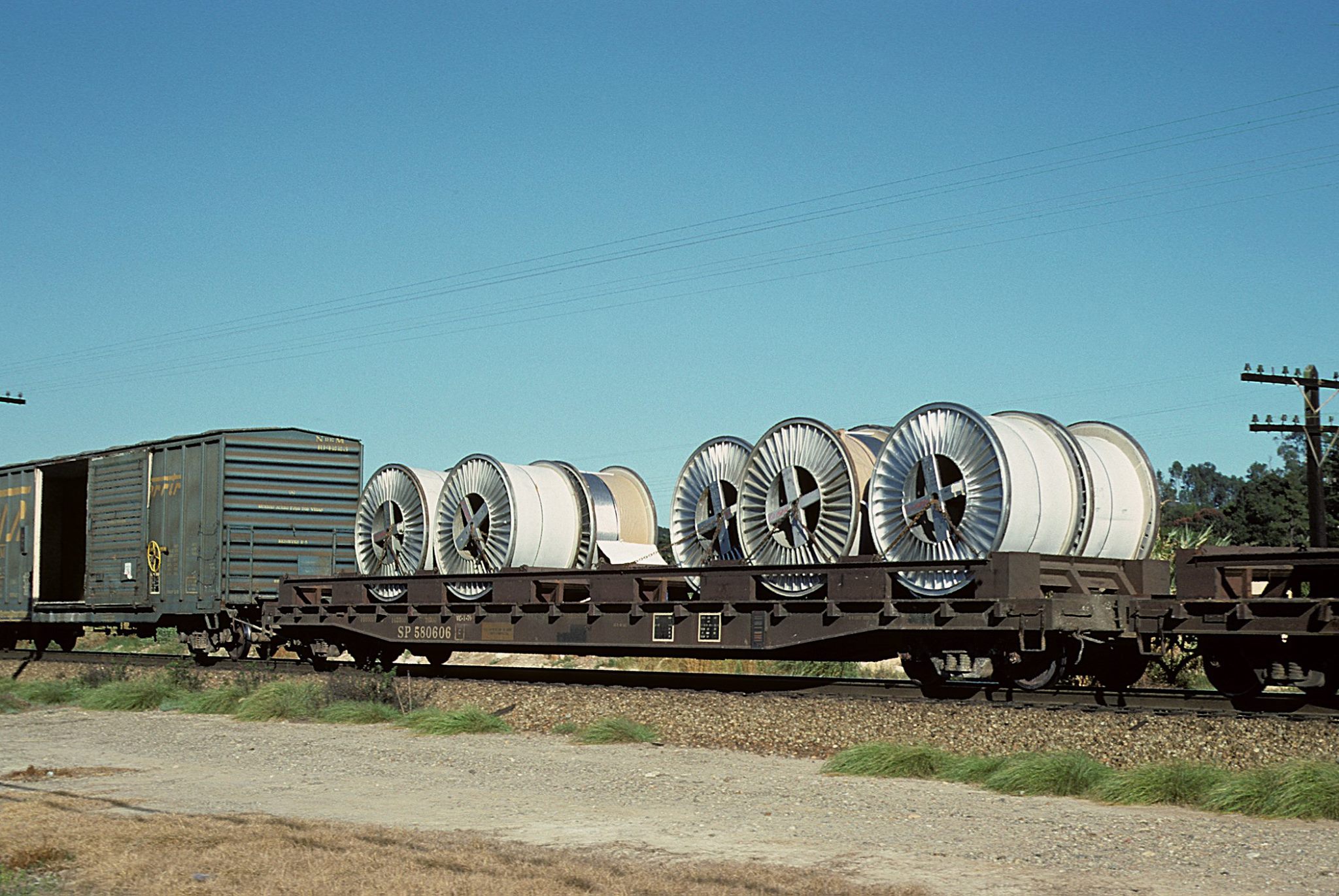

SP 580606

Charles Lange

Santa Barbara, CA; 06/xx/1978



SSW:

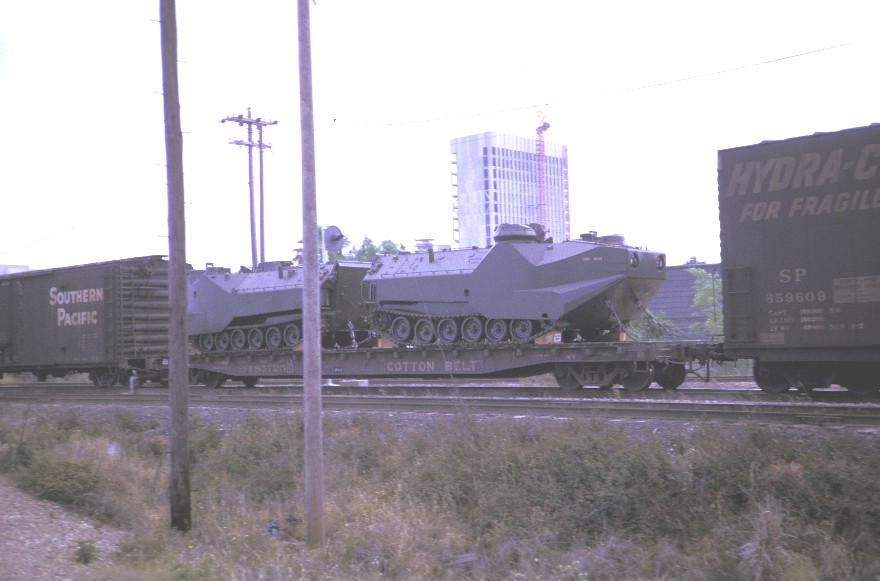

SSW 85725

Brian Ehni



SSW 86500

Brian Rutherford



SSW 86548

Brian Rutherford





Golden West Service - GVSR:

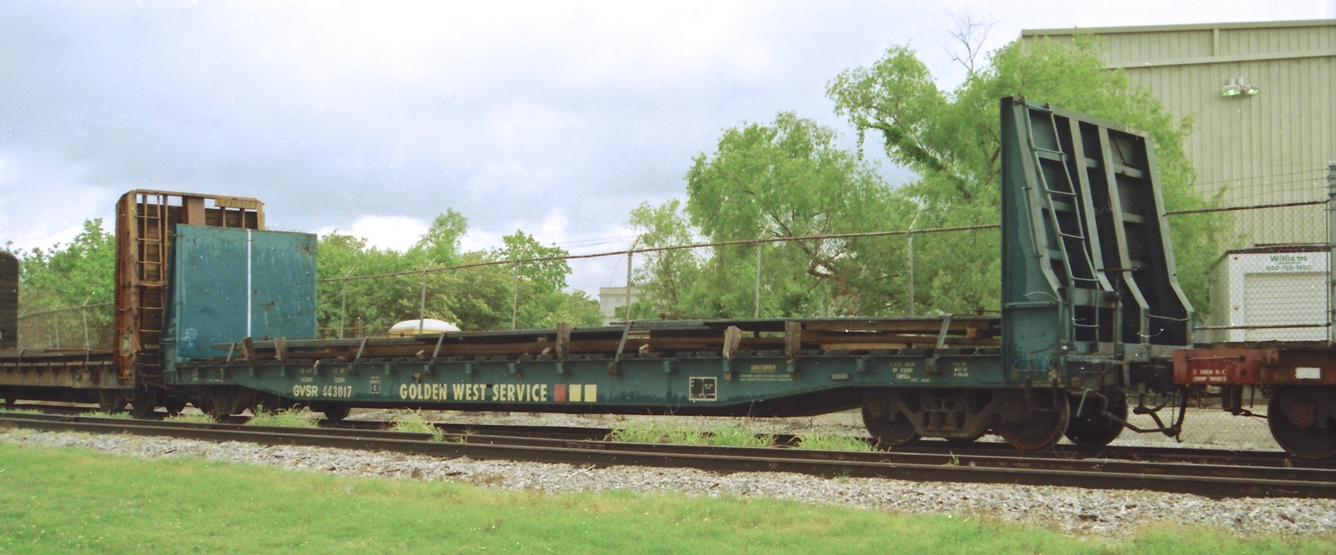

GVSR 443017

Patrick Harris

New Orleans, LA; 1996

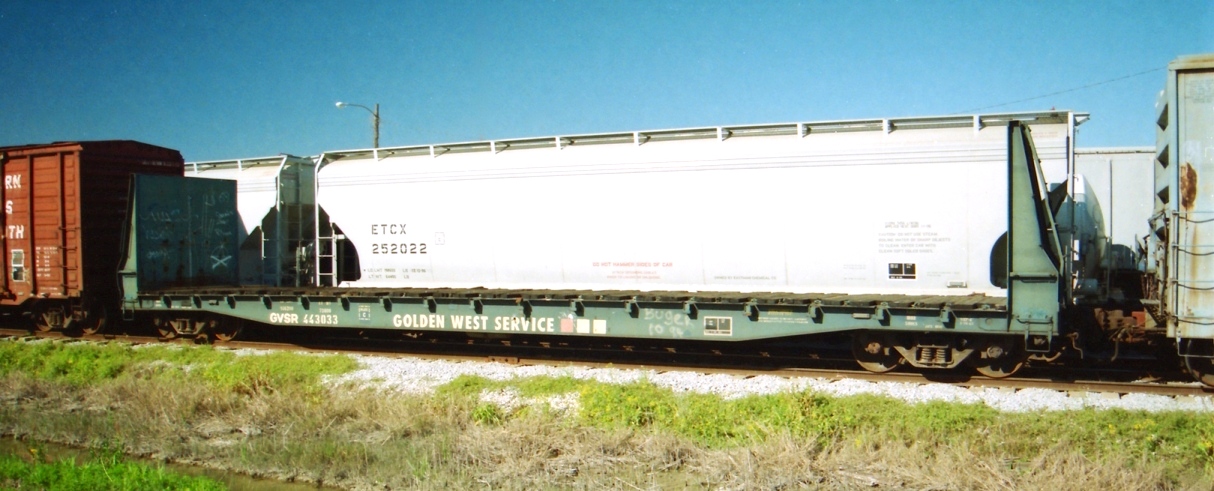

GVSR 443033

Patrick Harris

New Orleans, LA; 03/22/1998

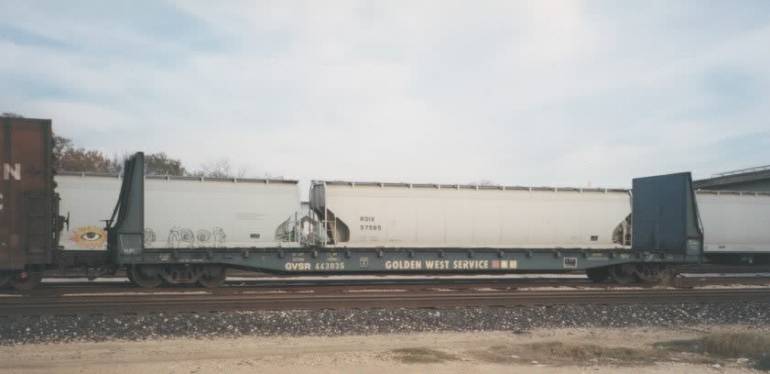

GVSR 443035

Mike Sebesta
