14 CARS • 6 AXLES • AMERICAN STEEL FOUNDRIES TRUCKS

ACF Lot No. 71-14120, January 1968

112,000 pounds Light Weight

282,000 pounds Load Limit

394,000 pounds Gross Weight

38,760 gallons

73-00 Outside Length

15-06 Outside Extreme Height

10-07 Outside Extreme Width

AAR Class : T109 (welded steel tank; 31,500+ gallons)

Specification : 111-A-100-W

Plate C

Built for the Shippers' Car Line Division of ACF Industries, Inc.

Initially leased to Mobil Oil for lube oil service.

Listed in Official Railway Equipment Register : OCT 1967-JUL 2005

ACF changed the reporting mark on these cars from SHPX to ACFX shortly after they were built.  These cars had the same specifications as SHPX-ACFX 88362-88375, which were built at the same time under ACF Lot No. 71-14121.

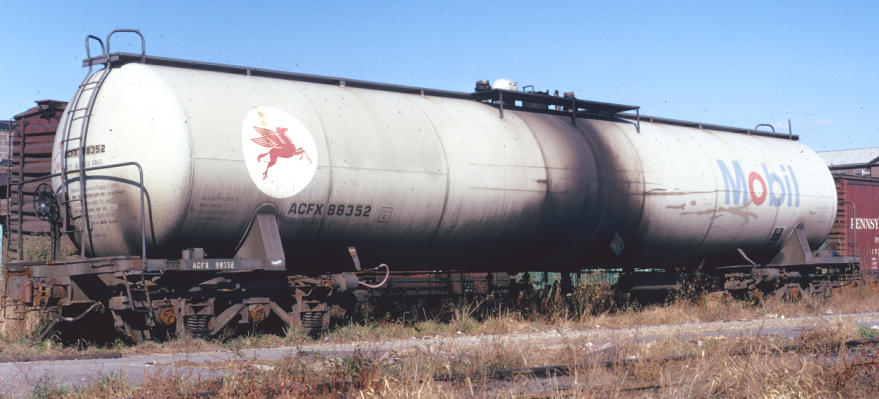

ACFX 88352	Jim Kinkaid Collection

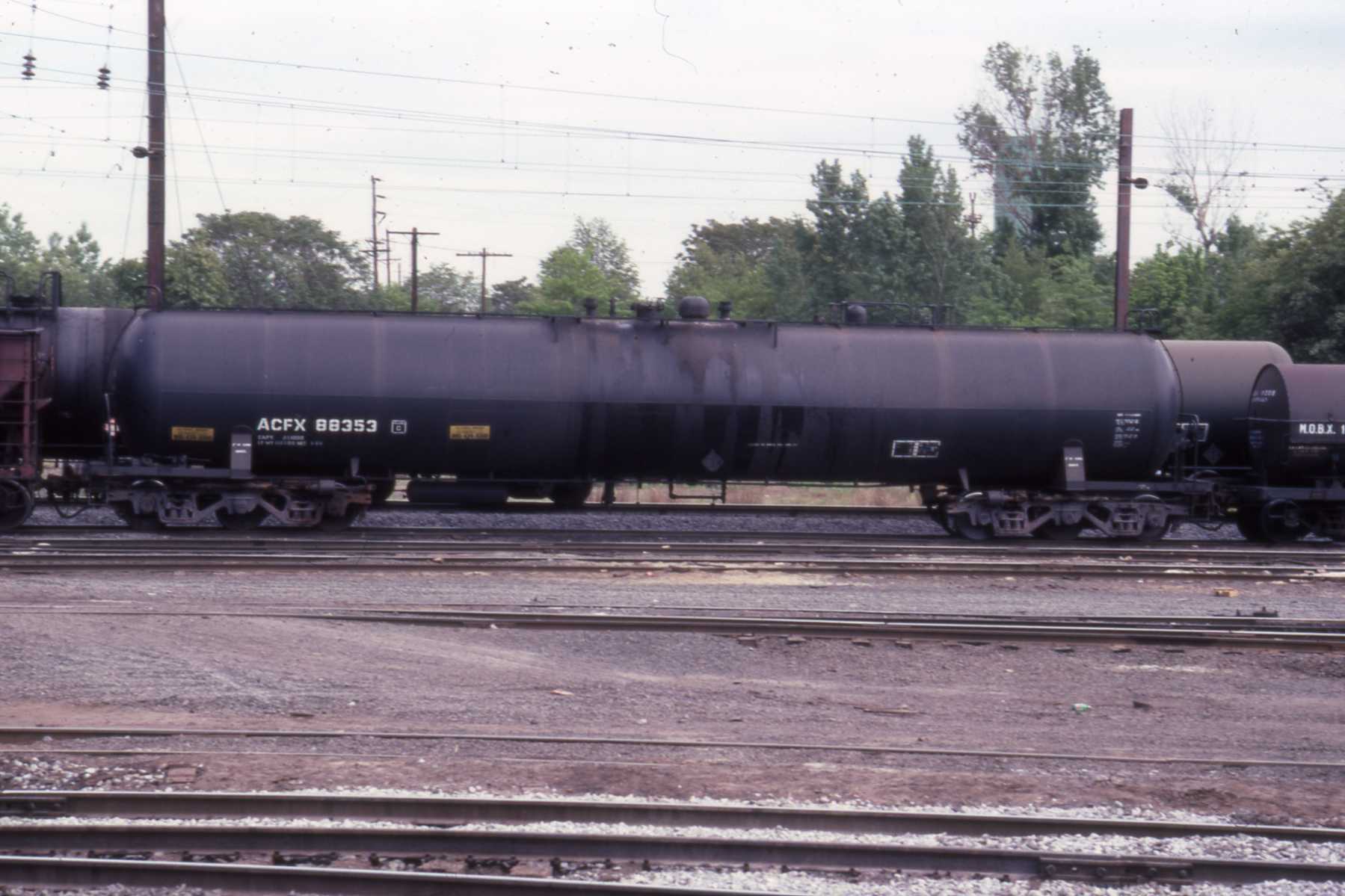

ACFX 88353	Eric Neubauer

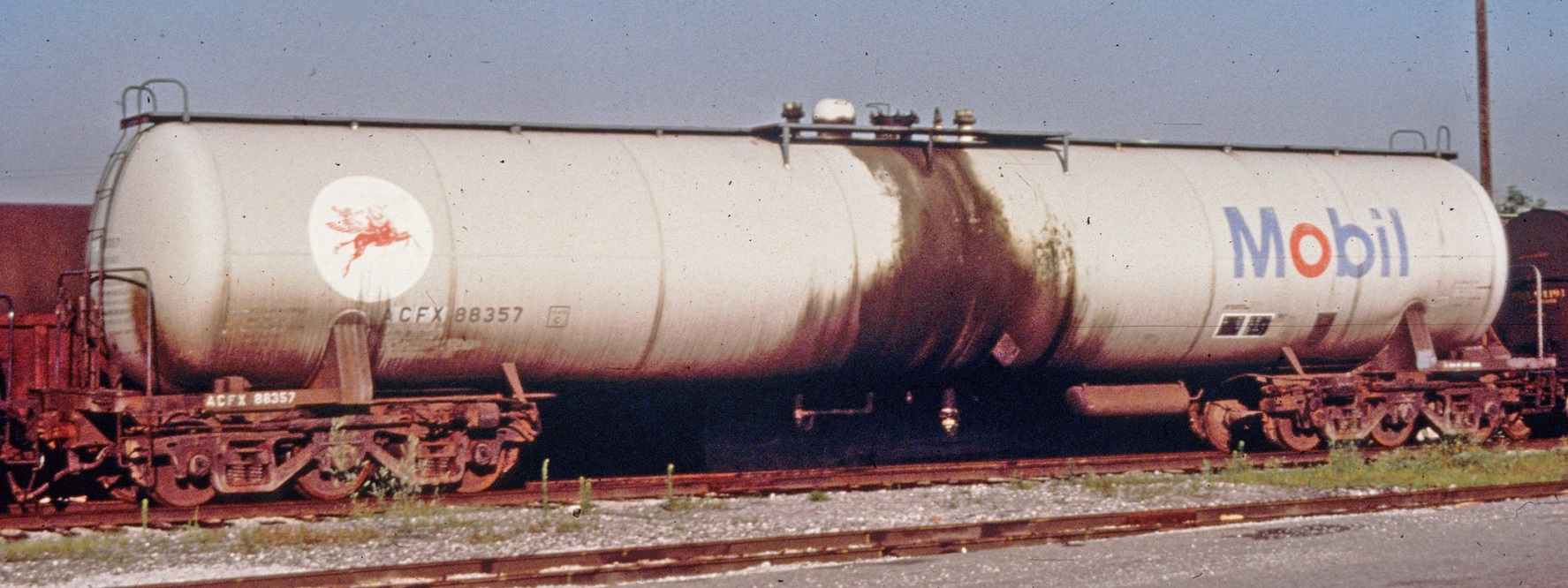

ACFX 88357	Jim Kinkaid Collection

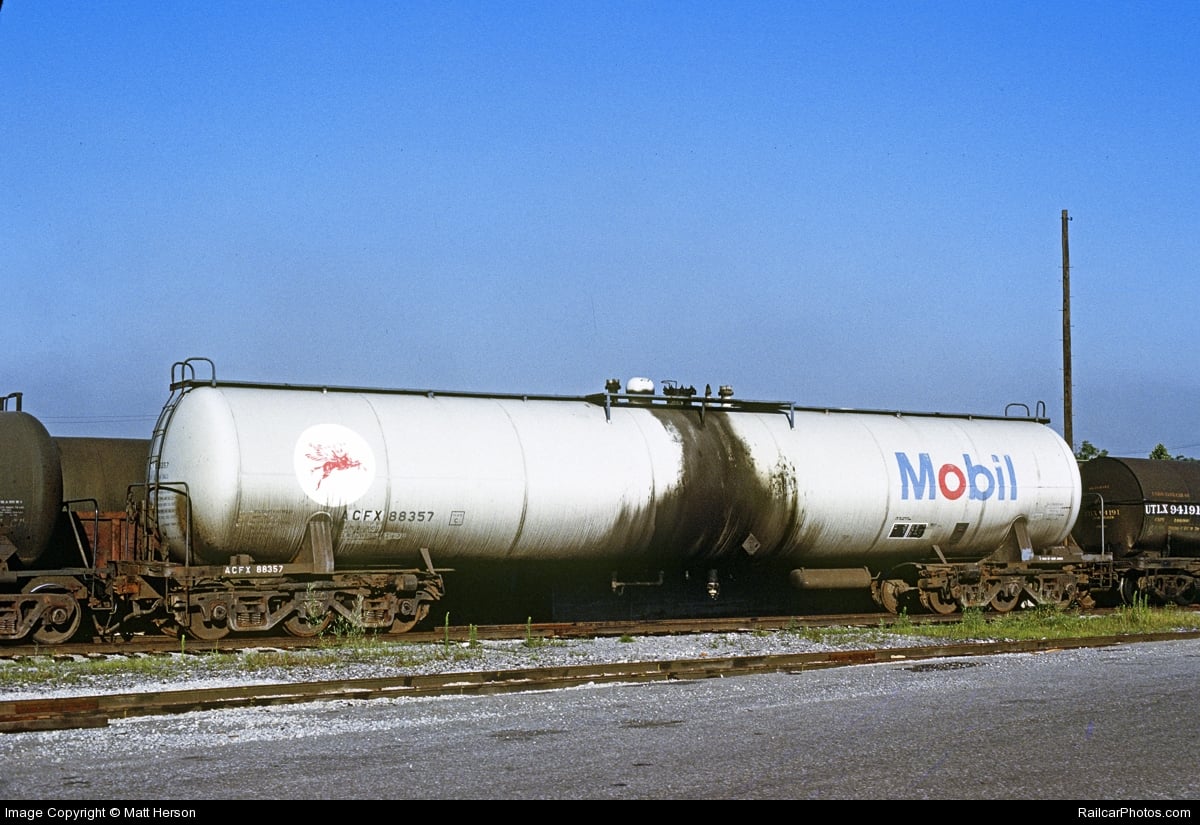

ACFX 88357	Matt Herson	Cleveland, OH - 07/20/1979
