GCX 741622-741646
GCX 741622-741646
R E V I S E D   2 4   J U L Y   2 0 1 3

GCX 741624 • John Eagan • N&W • Chicago, IL • 5 Oct 1974

25 CARS • 8 AXLES • FOUR 70-TON TRUCKS

  • Union Tank Car Corp., January 1969
  • 132,000 pounds Light Weight
  • 308,000 pounds Load Limit
  • 440,000 pounds Gross Weight
  • 42,000 gallons

  • AAR Code T109 (welded steel tank)
  • Specification No. : ICC 112-A-340-W
  • Plate C

  • Built for Allied Chemical Corp., General Chemical Division
  • Used for Vinyl Chloride service
  • Listed in Official Railway Equipment Register : JAN 1969-OCT 1978

    Mounting the body bolsters closer together than on other 42,000-gallon RailWhales allowed these cars to have side-mounted ladders and still remain within the Plate C clearance diagram.  All 25 cars remained in the ORER through the OCT 1978 issue and then disappeared in the next edition, so they were listed for less than 10 years.

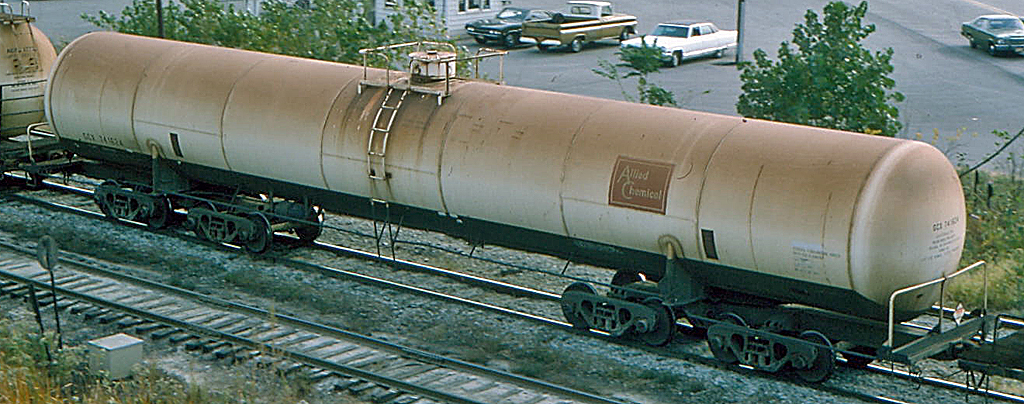

    GCX 741624 John Eagan N&W - Chicago, IL - 5 Oct 1974



    • CGP-27 © 2003-2013 Michael M. Palmieri
